Frequency Conversion

High End products from RF Lambda

RF-Lambda is an ISO 9001:2008 and ITAR registered internationally renowned company specialized in the development and manufacture of Military and Airborne Grade RF/Microwave components for the wireless infrastructure, satellite communications, medical and defence sectors. RFL Lambda offers Frequency Conversion with the following products;

Block down Converter:

General Specification:
IF Output frequency: 200MHz~800MHz
RF Input frequency: 19.85GHz~20.20GHz
External reference 10MHz interface available.
Frequency stability 2x10E –6 / Hour
Frequency hopping <10mS / 5MHz
High linearity low spurious in / out band
Handle high peak to average ratio signal such as OFDM, QPSK, DSSS signal.
Ideal for point to point radio station.
Small package high mobility

More models available

Block up Converter
General Specification:
IF input frequency: 25MHz~800MHz
RF output frequency: 19.85GHz~20.20GHz
Output power up to 1W CW.
Frequency stability 2x 10E –6 / Hour
Frequency hopping <10mS / 5MHz
Control interface: USB USART (TTL control)
High linearity low spurious in / out band
Handle high peak to average ratio signal such as OFDM,QPSK, DSSS signal.
Ideal for point to point radio station
Small package, high mobility.

More models available

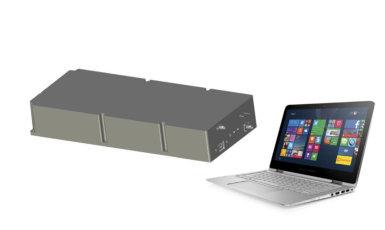

RF Synthesizer 0.039 – 44GHz Ultra Low Phase Noise USB Control (p/n RSYN01G44GA)

This easy to use high frequency signal generator controlled through a standard USB port. Using advanced VCO and DDS based technology along with a temperature compensated crystal reference, it offers ultra-low phase noise (- 129 dBc/Hz at 1 MHz offset 1 GHz output) and high frequency solution. The unit can also be locked to an external 10 MHz reference source.
For more specifications see our spec sheet tab.
