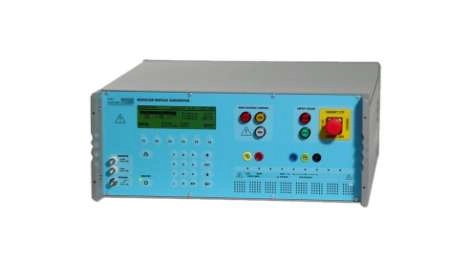

Telecom Test GeneratorsSpecial Surge & Telecom Test systemsEMC Partner offers a wide range of Telecom Test Generators who are capable to perform all Basic and Enhanced tests according to the International Telecommunications Union (ITU). Nowadays the traditional telecom systems have been replaced for modern high-speed digital equipment and thus (unique) CDN’s are needed to transfer impulse energy into high-speed communication systems. The MIG-series from EMC Partner are specialized generators built to meet customers’ needs and has resulted in a wide range of high quality and reliable generators. - MIG-ITU-K44: Power Induction Tester according to ITU-T K.44 and ITU-T K.45 - MIG0612T-K12: Dual surge current generator according to ITU K.12: 10/1000 - MIG0624T-K12: Dual surge current generator according to ITU K.12: 10/1000 - MIG0624-TEL: Current tester – Coaxial port tester with surges of 20 KA 8/20 - MIG0648-TEL: Telecom Tester for testing up to 8 ports, surges of 1 to 5 KA 8/20 - MIG1203T T-I: Telecom Tester according to ITU-T K.44: 10/700 - NW-K44PC: Extension network for Power Contact (PC) Tests (ITU-T K.44) - TEL0305LP3: Impulse Generator 10/350 up to 2x2.5kA + 10%
More models available! |
 |
Description- Compliant with ITU Basic and Enhanced Levels StandardsIEC 61000-4-5, IEC 61009-1, IEC 61643-1, IEC 61643-11, IEC 61643-21, IEC 61663-2, ITU-T K.20, ITU-T K.44, ITU-T K.45, ITU-T K.21 ManufacturerFamily company EMC Partner AG started in 1994 and has grown to be one of the leading players in the design and manufacture of conducted immunity test instruments. Innovation has always been key to the growth and success of EMC Partner. Immunity remains the core business of EMC Partner but with products covering avionics, military, component testing and recent the ground breaking development of the new CDN-line, the company has become an established player on the world stage in EMC Technology. AccessoriesCDN-UTP ED3; CDN for 1.2/50 and 10/700 surge coupling up to 6.6kV to 2 pair (4 wires) CDN-UTP8 ED; CDN for 1.2/50 and 10/700 surge coupling up to 6.6kV on up to 4 pairs (8 wires) PCPI160E; resistor set for power contact testing (ITU-T K.44)
