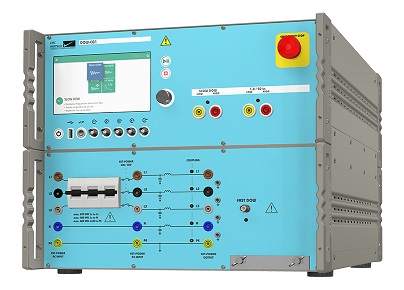

Description
- Slow & Fast damped oscillatory wave testing from 100KHz to 30MHz
- Programmable test routines and setups
- Magnetic Field testing
- Includes 0.5J / 500 insulation impulse (1.2/50)
- One EUT connection for all configurations
- Fully compliant with IEC 61000-4-10
Standards
IEC 61000-4-18
IEC 62052-11
ANSI C37.90
IEC 61000-4-10
Manufacturer
Family company EMC Partner AG started in 1994 and has grown to be one of the leading players in the design and manufacture of conducted immunity test instruments. Innovation has always been key to the growth and success of EMC Partner. Immunity remains the core business of EMC Partner but with products covering avionics, military, component testing and recent the ground breaking development of the new CDN-line, the company has become an established player on the world stage in EMC Technology.
Accessories
- CDN-DOW-DATA-LF; this can be used to apply 4.4 kV Slow Damped Oscillatory Waves on up to 8 unsymmetrical lines or 8 (low speed) symmetrical lines with line current up to 4 A and line voltage 250 V DC-60 Hz. This CDN is suitable for tests as per IEC61000-4-18 but also for a broad range of product standard requirements.
- CDN-DOW-DATA-HF18; this can be used to apply 4 kV Slow Damped Oscillatory Waves on up to 8 high speed symmetrical lines as required in IEC 61000-4-18. The CDN comes with optional RJ45 adapters in order to simplify connection of EUT and AE
- CDN-DOW-DATA-HF; this can be used to apply 4 kV Slow Damped Oscillatory Waves on up to 8 high speed symmetrical lines as required in IEC 60255-26. Special coupling (differential mode in a pair, one pair to all others floating or grounded) can be easily set in manual mode. The CDN comes with optional RJ45 adapters in order to simplify connections of EUT and AE.
- CN-EFT100; Capacitive EFT / Burst coupling clamp 100pF
- VERI-CP-EFT; this is a transducer plate to calibrate the coupling clamp
