Relay Switching Unit | RSU

For all EMC / RF measurements to switch

- Frequency range: DC to 12.4 GHz (up to 18 GHz or 40 GHz optional)

- Test level:

   50 V cont., 300 V (1s) at energetically used frequencies

   DC…1GHz |1 GHz…5 GHz |5 GHz…10 GHz |10 GHz…12.4 GHz

- Switching time: < 60 ms

- 19″-sub rack or desktop case



 Image text

Description

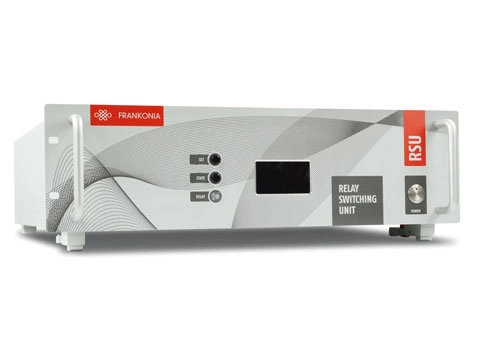

Frankonia’s RSU Relay Switching Unit is a device which is capable for all fields of RF and EMC measurements from one input to 2 or 3 outputs, and can be done manual or remote controlled. Changeover switching between different amplifiers, antennas or power meters are typical applications. The one box switching solution prevents circuit faults due to wrong cabling and thus a perfect asset in your lab.



The input/output connectors of the relays are installed on the rear panel of Frankonia’s RSU. This makes cabling and mounting into a 19” very simple.

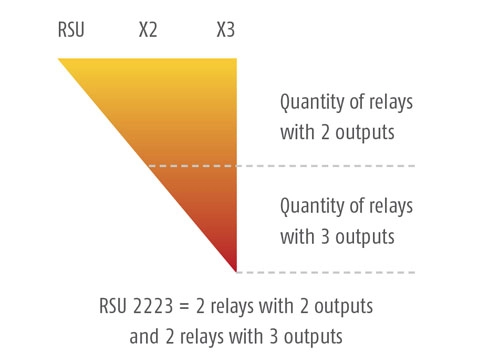

Definition of the relay assembly:

relay assembly



The RSU can be equipped with a maximum of 4 relays with 2 or 3 outputs. The quantity of relays with 2 or respectively 3 outputs is variable.
