Radiated Immunity Test SystemsOne Box Solution for Radiated Immunity Tests- Conducted immunity tests according to IEC/EN 61000-4-6, 10 kHz – 230 MHz - BCI-tests according to ISO 11452-4 and MIL-STD 461, CS 114 - Radiated immunity tests according to: IEC/EN 61000-4-3, ISO 11452-2/3/4/5, MIL-STD 461, RS 103 - Automatic switching between up to four external power amplifiers and connected coupling units / antennas - Automatic switching between up to two EMI-receivers, spectrum analyzers and three different antennas - Easy integration into any control software by dll-driver - Integrated interlock safety system
|
 |

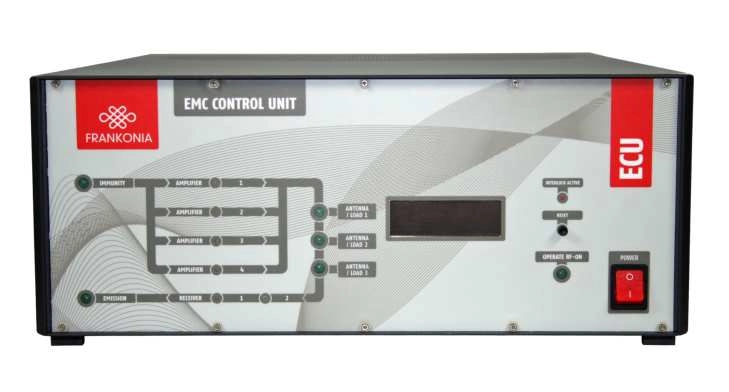

DescriptionThe setup for a radiated immunity test system is traditionally done with many separate instruments. This ‘old school’ testing will do the job but more convenient and less risky is Frankonia’s ECU-6 EMC Control Unit. The ECU-6 is a central EMC test and control unit and combines many major test components in just one compact box, such as: Signal Generator, Power Meter, Directional Couplers and Relay Switching.
This One Box solution reduces cabling work and or cabling mistakes. Further the ERC-6 includes general functions like EUT-monitoring and an interlock safety-system.
The ECU-6 is an all-round EMC control unit and can be used for many different conducted and radiated immunity tests. This clever device and easily switch between EMI-receiver and Spectrum Analyzer and Measuring different antennas without time consuming cabling work. It also allows to control and switch automatically between up to 4 external amplifiers and up to 3 different outputs for antennas or coupling devices.
Test levels up to 30V/m are available too and RS test system for other standards (ISO11452-2, MIL-STD-461 RS103 or similar) can also be supplied.
For more technical information download Frankonia’s brochure under the tab ‘download’, or contact RIMARCK directly.
|
